DRV 235

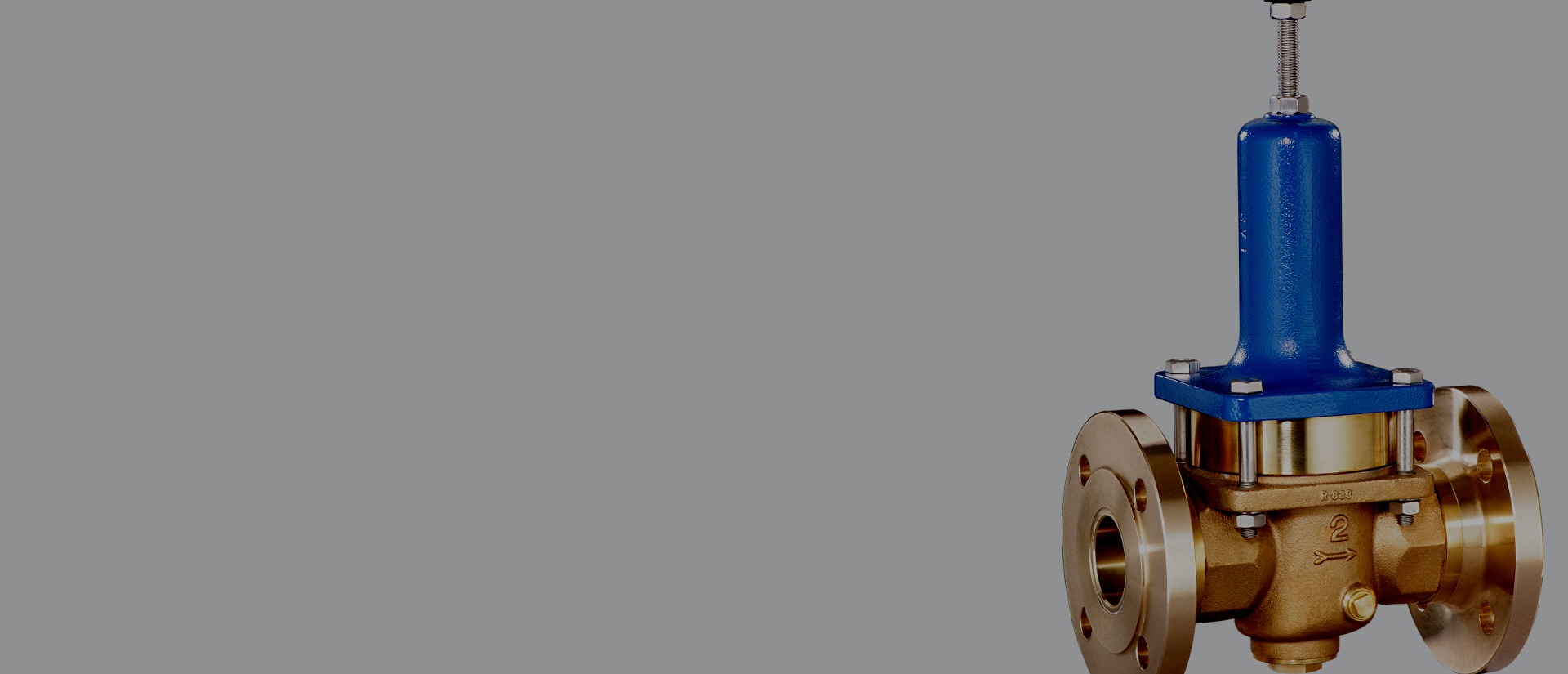

Pressure reducing valves of the series are piston-operated, spring-loaded pressure reducing valves. The series has a high setting accuracy and good response behaviour due to their low friction of the few moving internal parts.

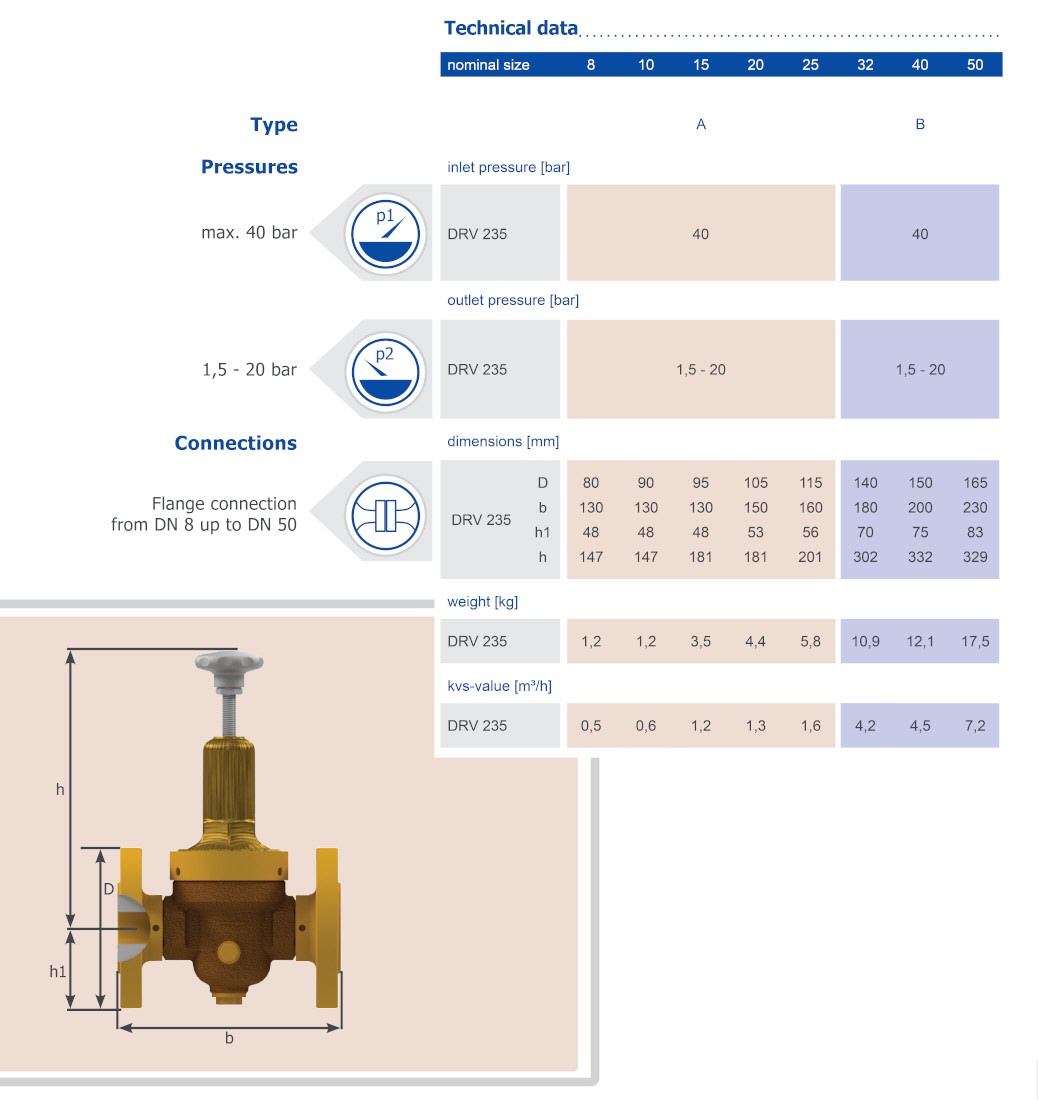

Nominal size DN 8 up to DN 50
Inlet pressure up to 40 bar
Outlet pressure from 1,5 up to 20 bar
Temperature range -15°C to 190°C
