Sea water

The DRV series with the identification "-SW" were specially developed for use with seawater. The carefully selected materials ensure optimum corrosion resistance. Whenever the medium seawater is used, you can use our pressure reducers of the SW series, e.g. on ships, oil platforms or in desalination plants.

With inlet pressures up to 25 bar and outlet pressures between 0.5 and 9 bar, our standard valves are suitable for many applications. In addition, we also offer other pressure ranges to suit your application. Our pressure reducers are suitable for both low (from kvs-value 2.9 m⊃3;/h) and high (up to kvs-value 210 m⊃3;//h) flow rate applications.

Features

  • Seals

    Only seals with a high resistance to seawater are used for this series. As standard we use NBR seals for all types, optionally EPDM or Viton seals can be used.

  • Wetted parts

    Smaller nominal diameters up to DN 32 are equipped with a removable cartridge made of POM and red-bronze. From DN 40 upwards, the internal parts are made completely of red-bronze. Pressure reducers of the DRV 6 series have a spindle made of high-quality stainless steel.

  • Body

    All types of the DRV 3, 5 and 6 SW series have a red-bronze housing (CuSn5Zn5Pb2-C-GS / CC491K, "RG5"). This material has been used for decades in the field of drinking water and seawater and is known for its high seawater corrosion resistance. Red-bronze is a further development of the so-called gunmetal, which has been used in shipping for centuries.

  • Flanges

    Like all other parts in contact with the medium, the flanges are made of red-bronze. Up to DN 80 they comply with DIN EN 1092 PN 25, from DN 100 they can be supplied according to DIN EN 1092/PN 16 or optionally also according to DIN EN 1092/PN 25. Of course we also offer flanges according to ANSI, JIS, etc.

Normal pressure

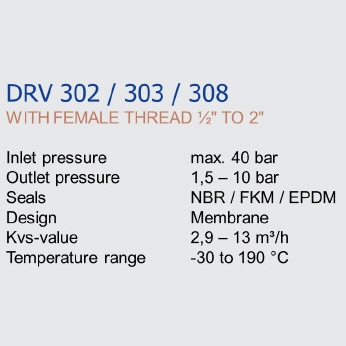

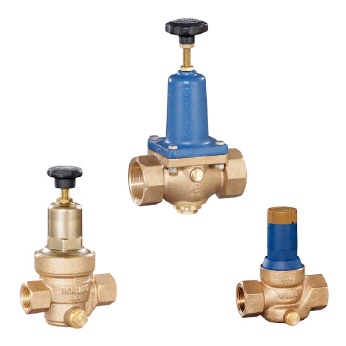

  • DRV 302 / 303 / 308

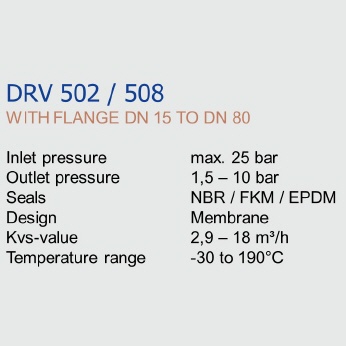

  • DRV 502 / 508

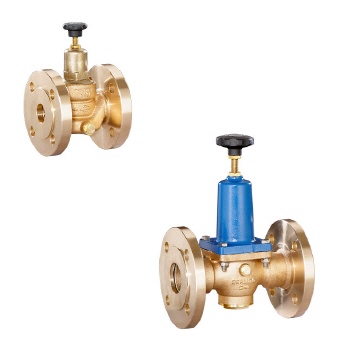

  • DRV 602 / 608

Es wurden keine Produkte gefunden, die Ihren Kriterien entsprechen. Wählen Sie andere Filter-Optionen.

High pressure

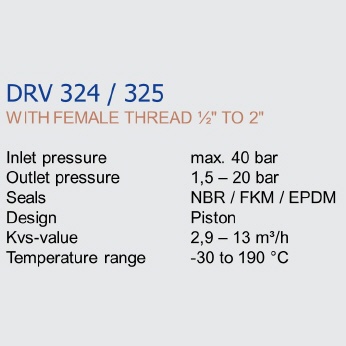

  • DRV 324 / 325

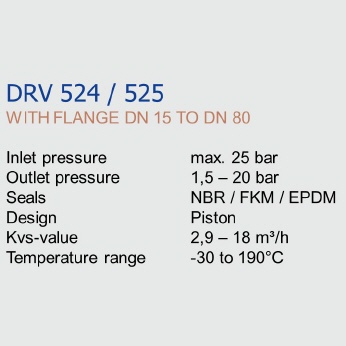

  • DRV 524 / 525

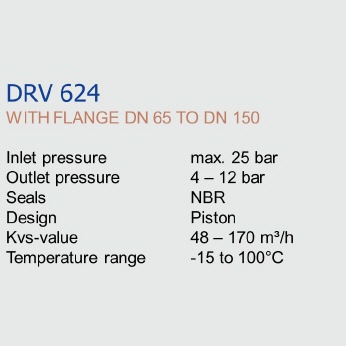

  • DRV 624

Es wurden keine Produkte gefunden, die Ihren Kriterien entsprechen. Wählen Sie andere Filter-Optionen.

Low pressure

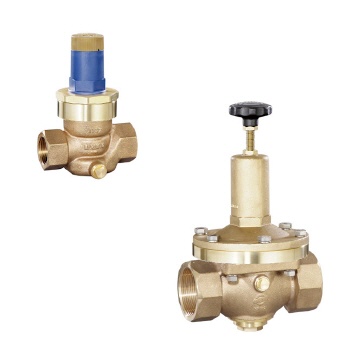

  • DRV 350

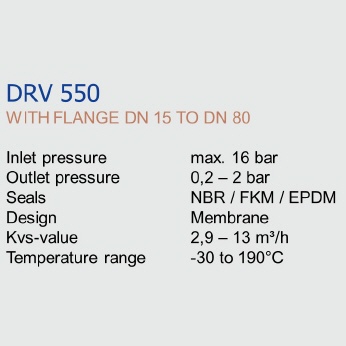

  • DRV 550

Es wurden keine Produkte gefunden, die Ihren Kriterien entsprechen. Wählen Sie andere Filter-Optionen.

Wide range

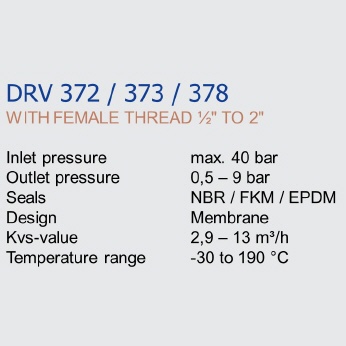

  • DRV 372 / 373 / 378

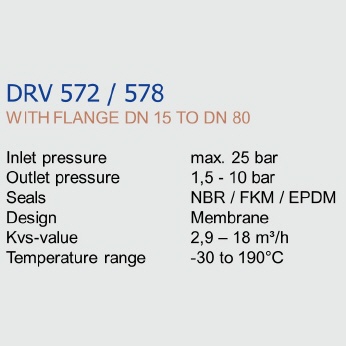

  • DRV 572 / 578

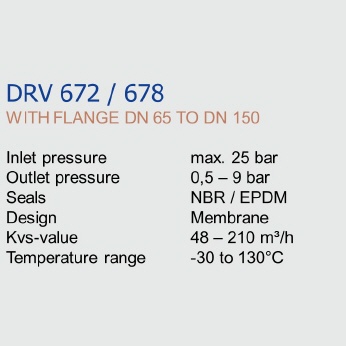

  • DRV 672 / 678
