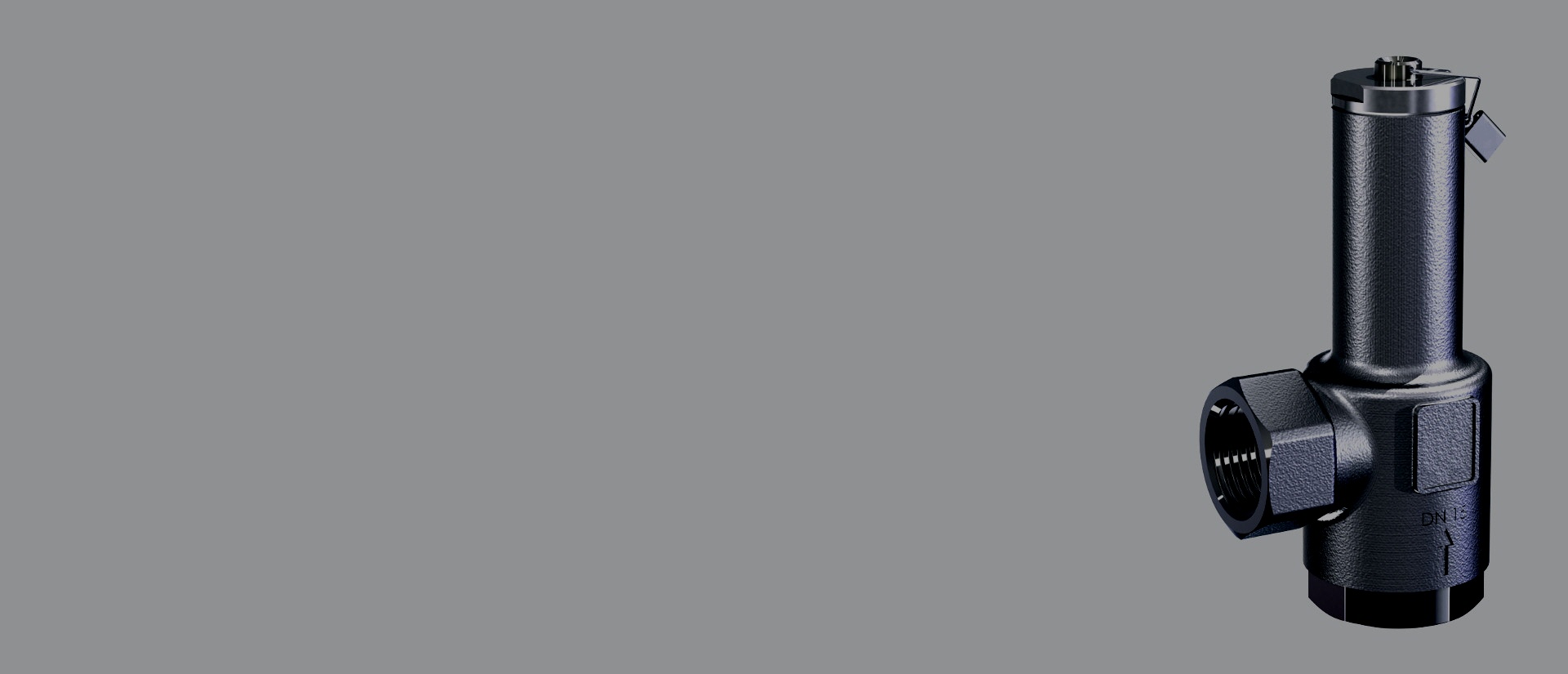

SP 85

Direct-acting, spring-loaded angle overflow valve for steam and gaseous media and liquids. Resistant to oil, lead-free petrol and benzene.

Nominal size DN 10 up to DN 50
Working pressure 0,5 - 20 bar
Temperature range up to 225°C

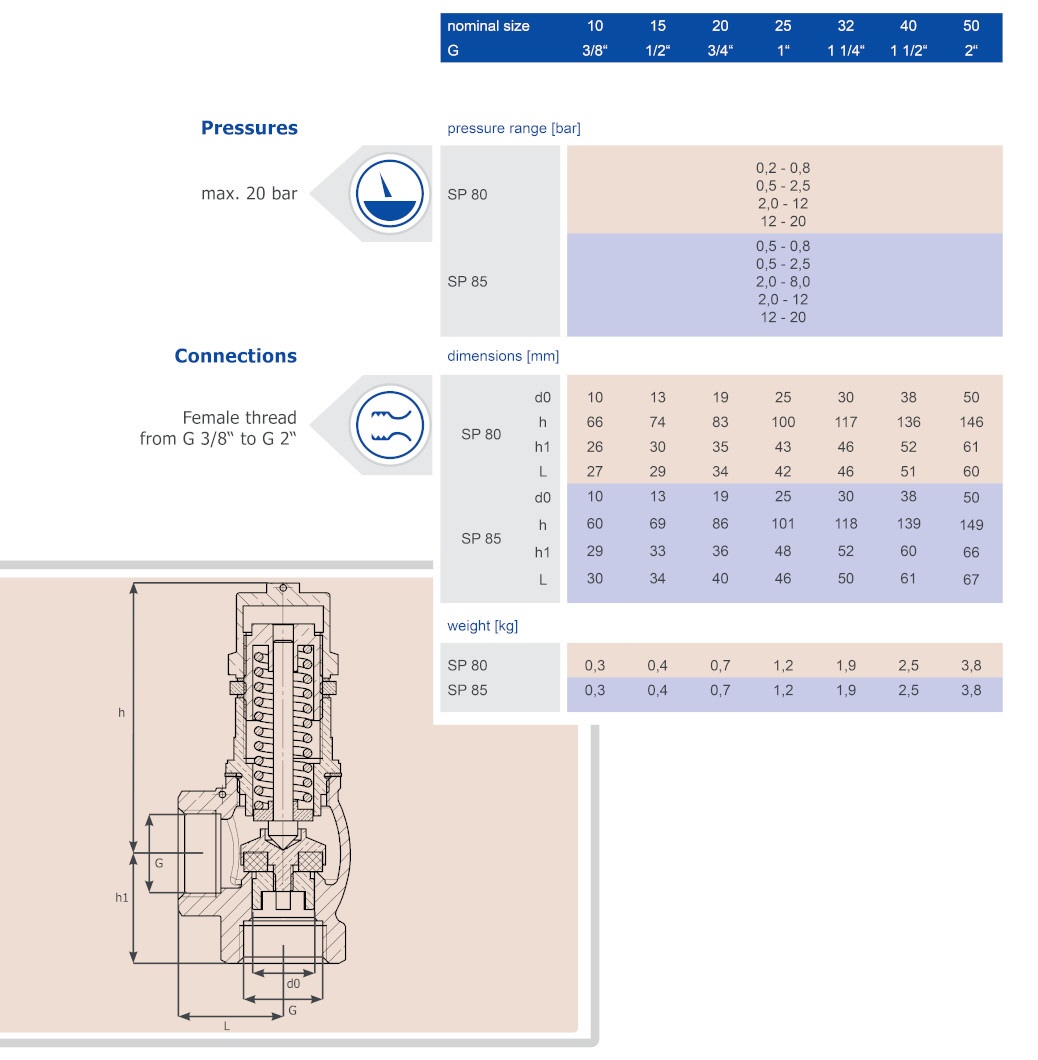

Technical data
