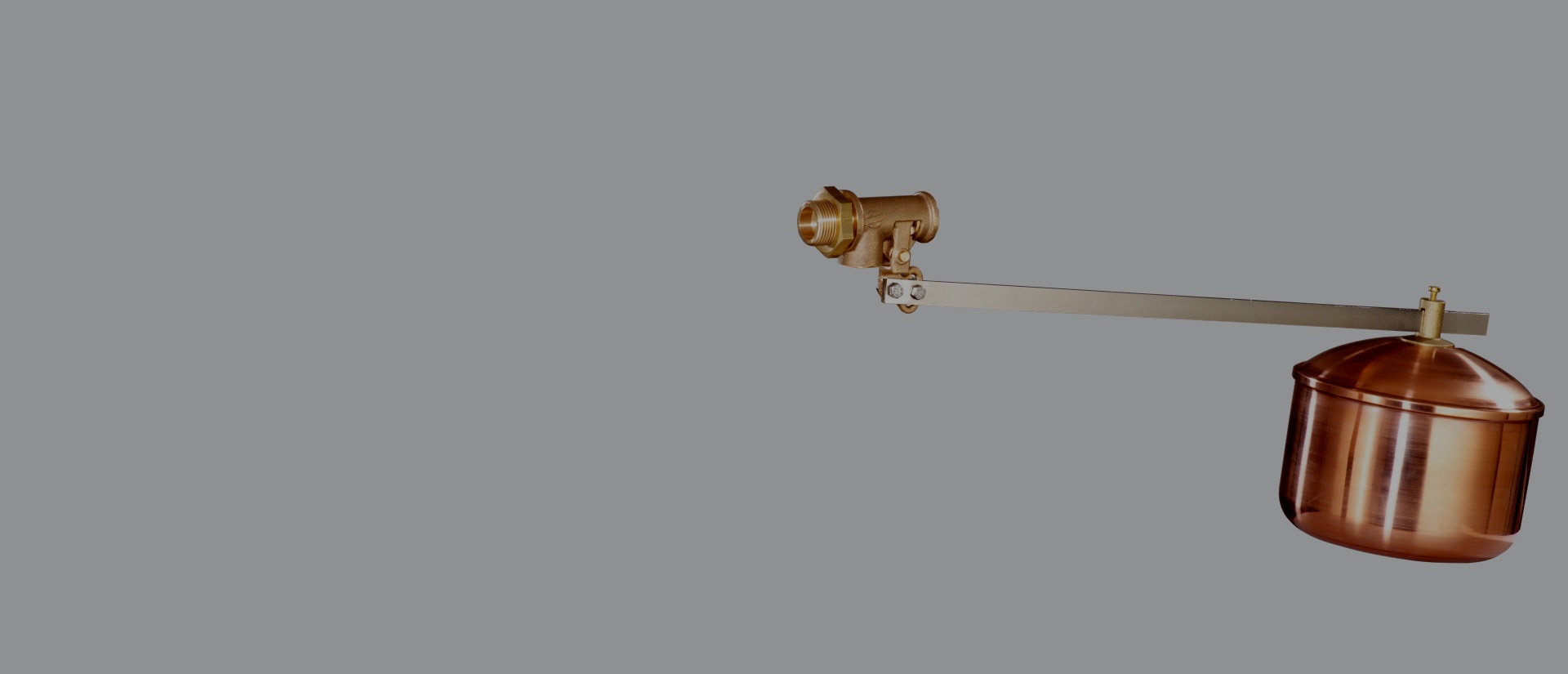

KSV 10

Float valves of this series are ideal for filling medium to large storage tanks or for level control. A desired liquid level can be precisely adjusted by moving the float. The valves have a high flow rate.

Nominal size DN 15 up to DN 25
Inlet pressure up to 12 bar
Kvs-value 2,7 - 6,7 m³/h
Temperature range up to 80°C up to 190°C with VA float

Technical data
